Conventional Detectors & Bases

Smoke Detectors

Conventional Optical Smoke Detector

  • The Fyreye MKII optical smoke detectors use a pulsing IR LED & photodiode to detect IR scatter caused by smoke entering the chamber.
  • The detector is particularly suitable for detecting optically dense smoke, involving materials such as soft furnishings, PVC, plastic, foam and all similar materials which produce small visible particles (0.5 to 10μm).

Conventional Opto-Heat Detector

  • The Fyreye MKII optical smoke detectors use a pulsing IR LED & photodiode to detect IR scatter caused by smoke entering the chamber.
  • The detector is particularly suitable for detecting optically dense smoke, involving materials such as soft furnishings, PVC, plastic, foam and all similar materials which produce small visible particles (0.5 to 10μm).
  • The Fyreye Rate of Rise heat detectors (MKII-HR) use a thermistor arrangement to sense a quick rise in temperature and also a final threshold temperature of 57°C. The Fyreye fixed heat detector (MKII-HF) has a single thermistor arrangement that gives an alarm at a temperature of 57°C.
  • There are 4 types of mounting base available; standard or deep and with or without diode

Heat Detectors

Conventional ROR Heat Detector

The Fyreye Rate of Rise heat detectors (MKII-HR) use a thermistor arrangement to sense a quick rise in temperature and also a final threshold temperature of 57°C.



Conventional Fixed Heat Detector

The Fyreye fixed heat detector (MKII-HF) has a single thermistor arrangement that gives an alarm at a temperature of 57°C.





Detector Bases

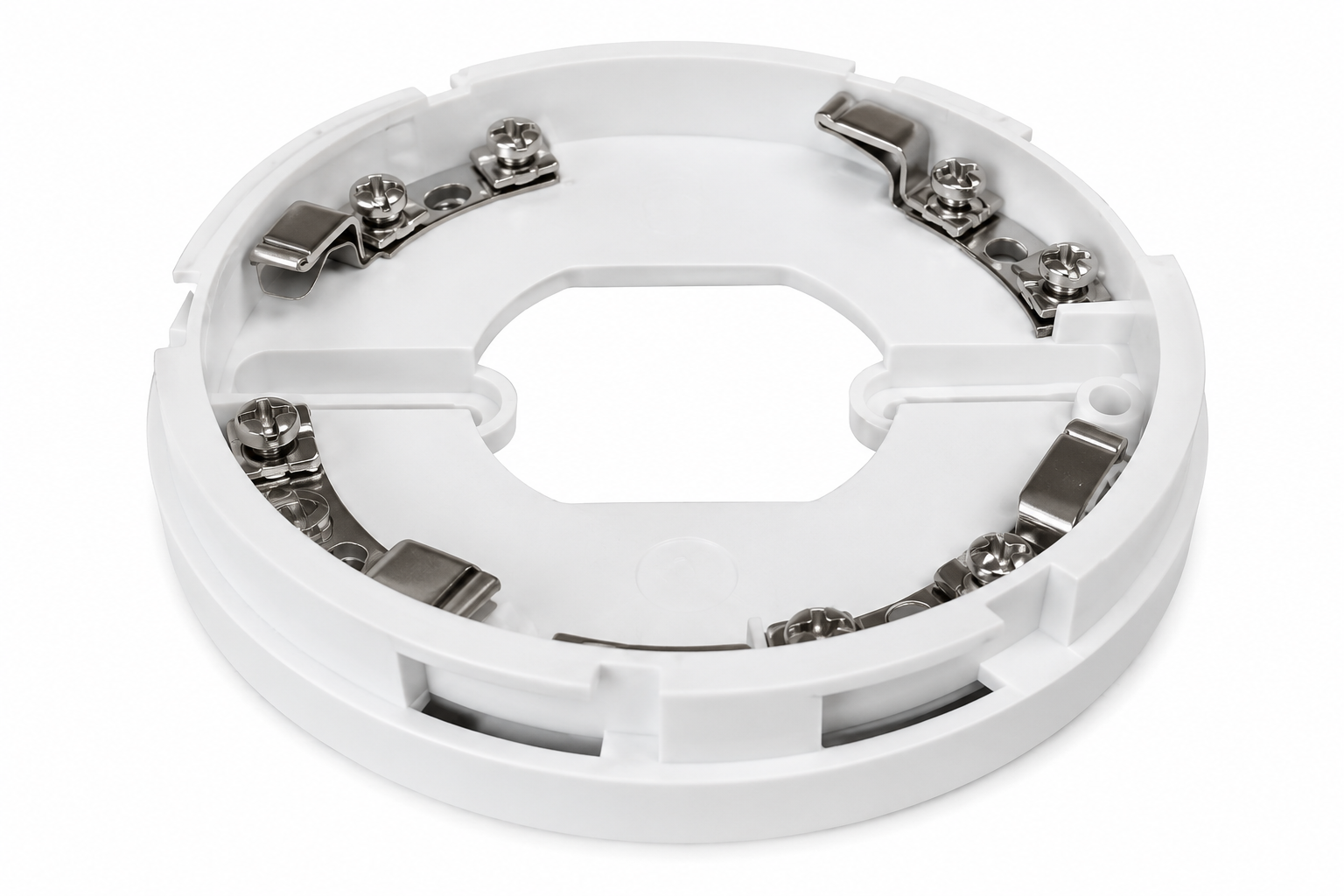

Common Base

There are 4 types of mounting base available; standard or deep and with or without diode.

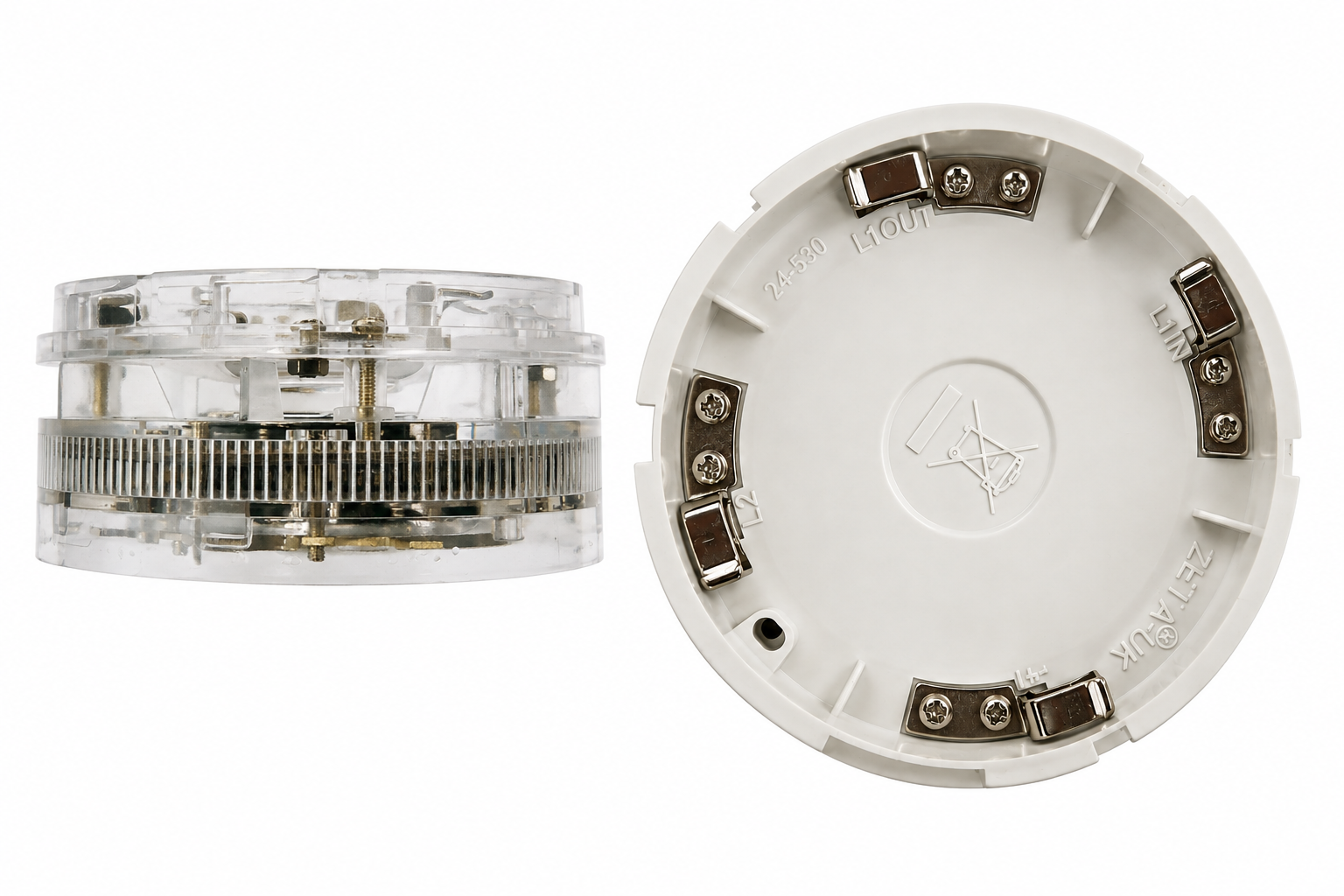

Sandwich Sounder

The Fyreye II Sandwich sounder base is a platform sounder that works with the Zeta Fyreye II protocol. The sounder can be triggered from it`s detectors remote LED output, allowing the sounders to be triggered individually. It can also be triggered using the Protocol`s common sounder group command, meaning that it can be triggered even if it`s detector has been removed.



Remote LED Indicators

Conventional Remote LED Indicator (Wall Mounted)

  • There are two models for the Conventional Remote LED Indicator, a wall type MKII-RL/W and ceiling mounted type (requires a base) MKII-RL/C.
  • Each unit has 2 LEDs that light up to indicate an alarm. It has the 8 LED appearance to keep it’s family identity.
  • The MKII-RL/W is supplied with a backbox for surface mounting. It is also available without backbox for flush mounting.

Conventional Remote LED Indicator (Ceiling Mounted)

  • There are two models for the Conventional Remote LED Indicator, a wall type MKII-RL/W and ceiling mounted type (requires a base) MKII-RL/C.
  • Each unit has 2 LEDs that light up to indicate an alarm. It has the 8 LED appearance to keep it’s family identity.
  • The MKII-RL/W is supplied with a backbox for surface mounting. It is also available without backbox for flush mounting.
