Addressable Interfaces

Fyreye MKII Modules

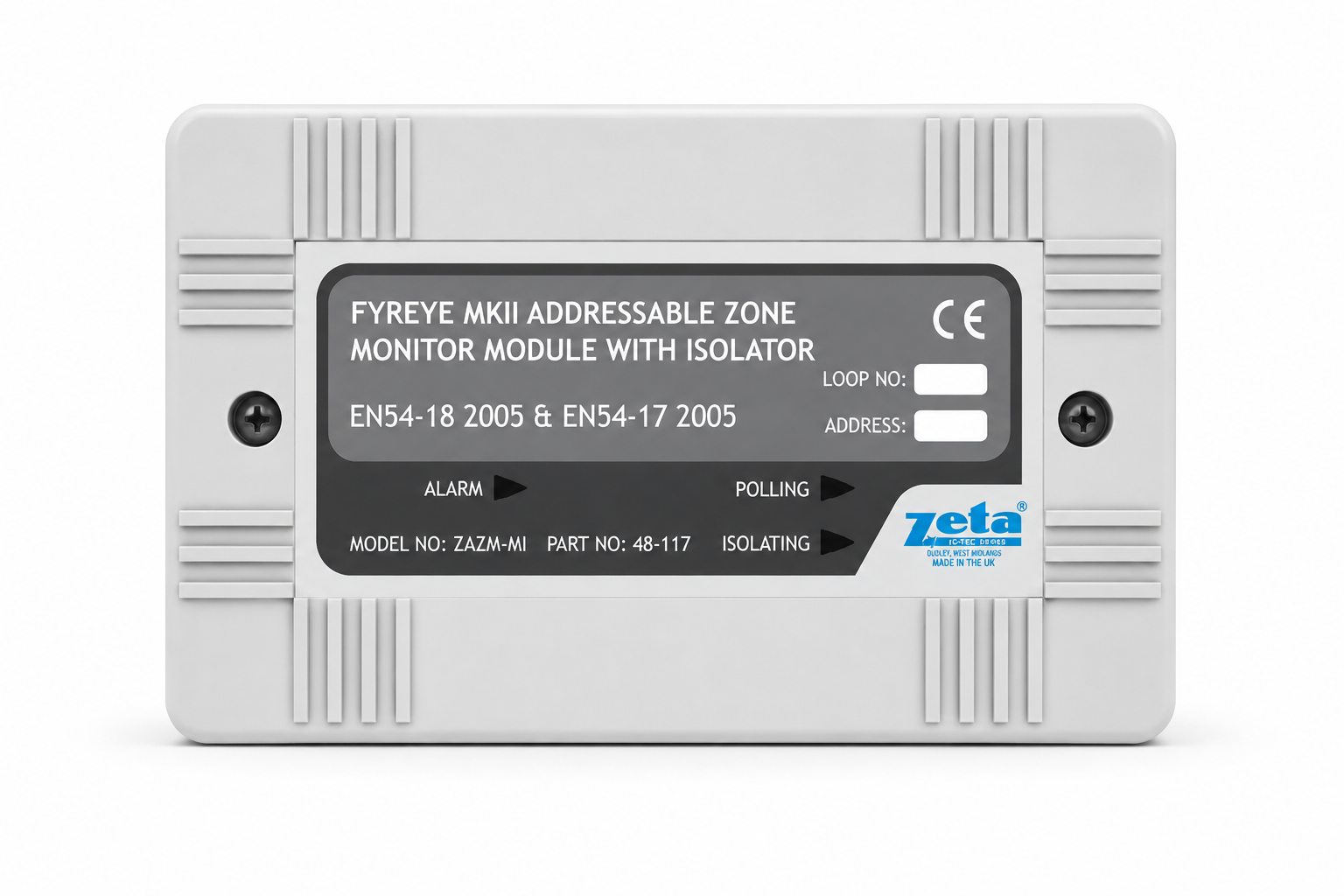

Zone Monitor Module With Isolator

  • The ZAZM-MI is a conventional zone that can be used for conventional devices and/or for special detectors that are not available in addressable form such as UV detectors, Aspiration detectors etc.

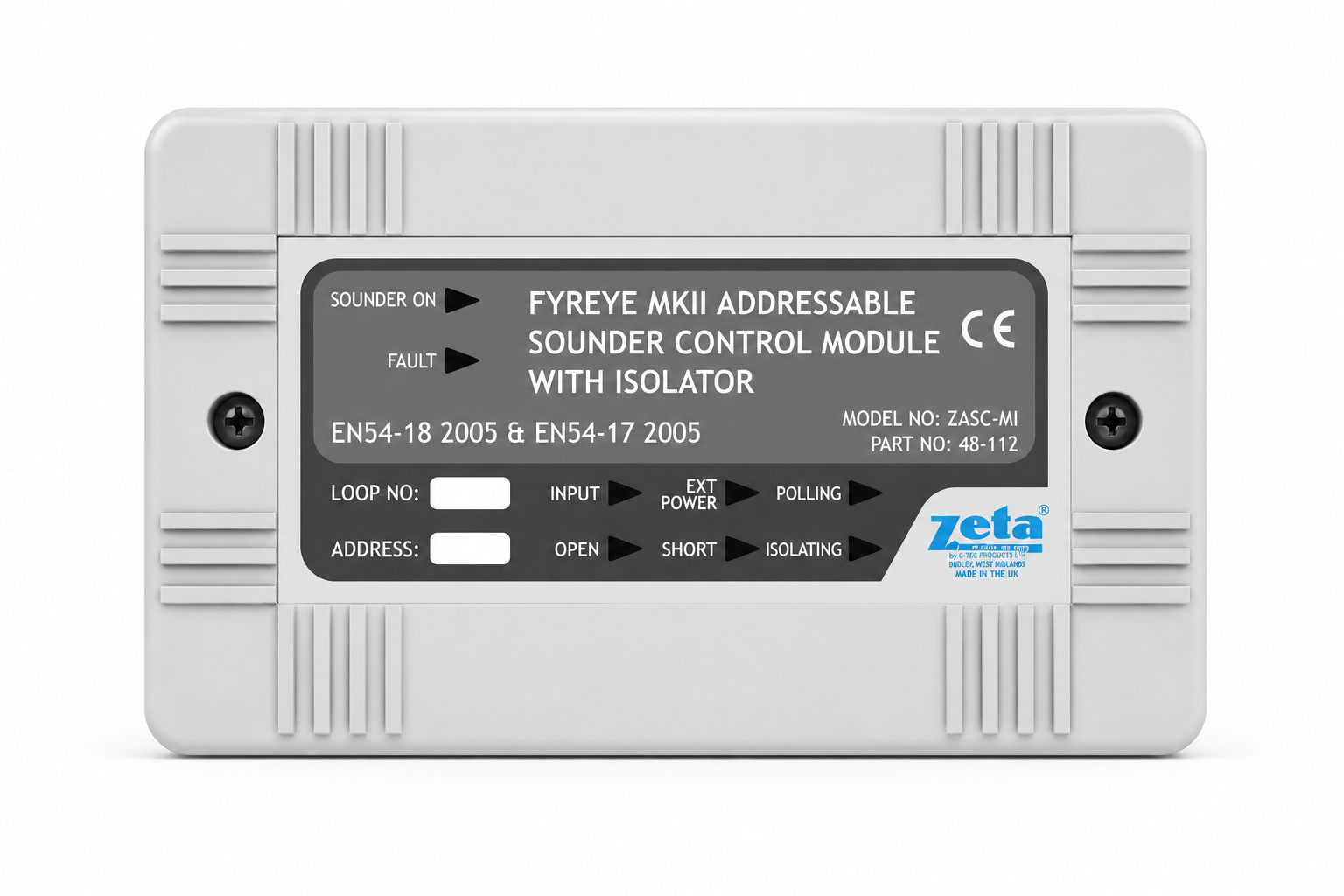

Sounder Control Module With Isolator

  • The ZASC-MI can be used to supply a monitored 24Vdc to operate external relays and as a conventional sounder circuit to run bells or beacon flashers where the current consumption prohibits the use of addressable loop powered devices. The unit also includes input connections to monitor the external power supply status and report the findings to the addressable control panel.

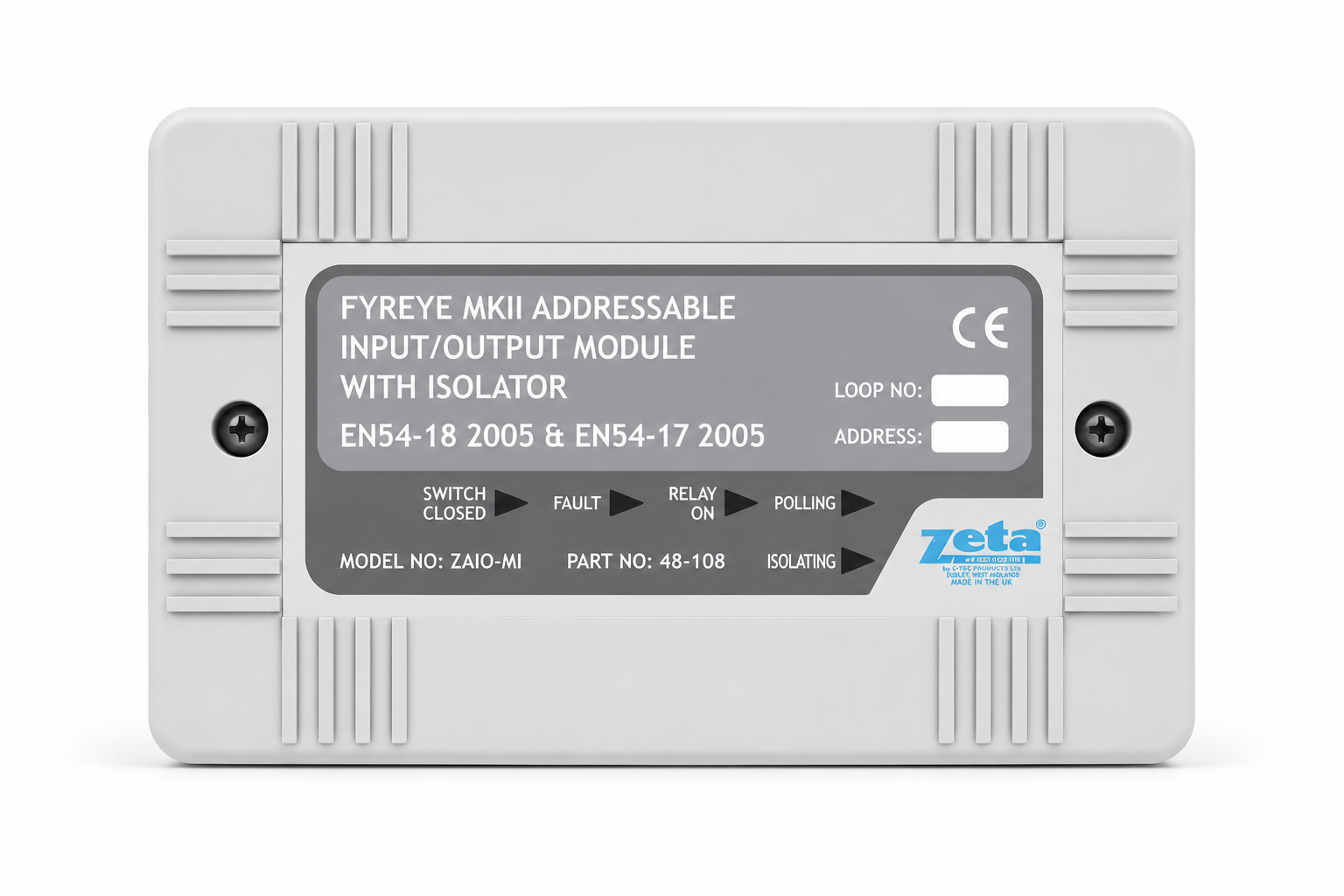

Input/Output Module with S/C Isolator

  • The ZAIO-MI is both an input and output module in a modern enclosure (2 gang box size) with well protected electronic circuit board to minimise any damages during installation.

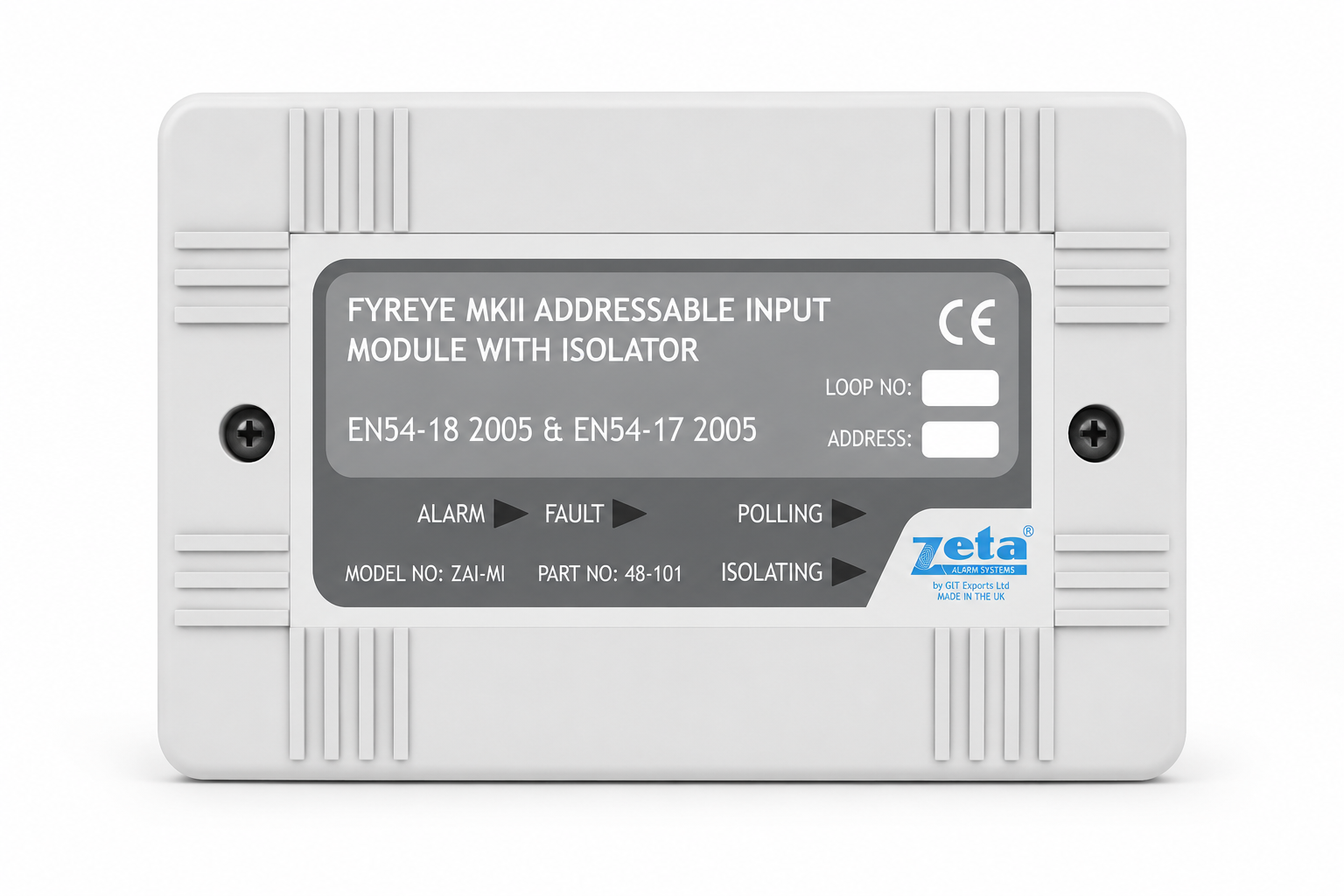

Input Module with S/C Isolator

  • The ZAI-MI is used to monitor and raise alarm from any ancillary equipment such as sprinkler flow switch, aspiration detectors, secondary fire control panel, beam detectors, external power supplies etc.



Special Modules

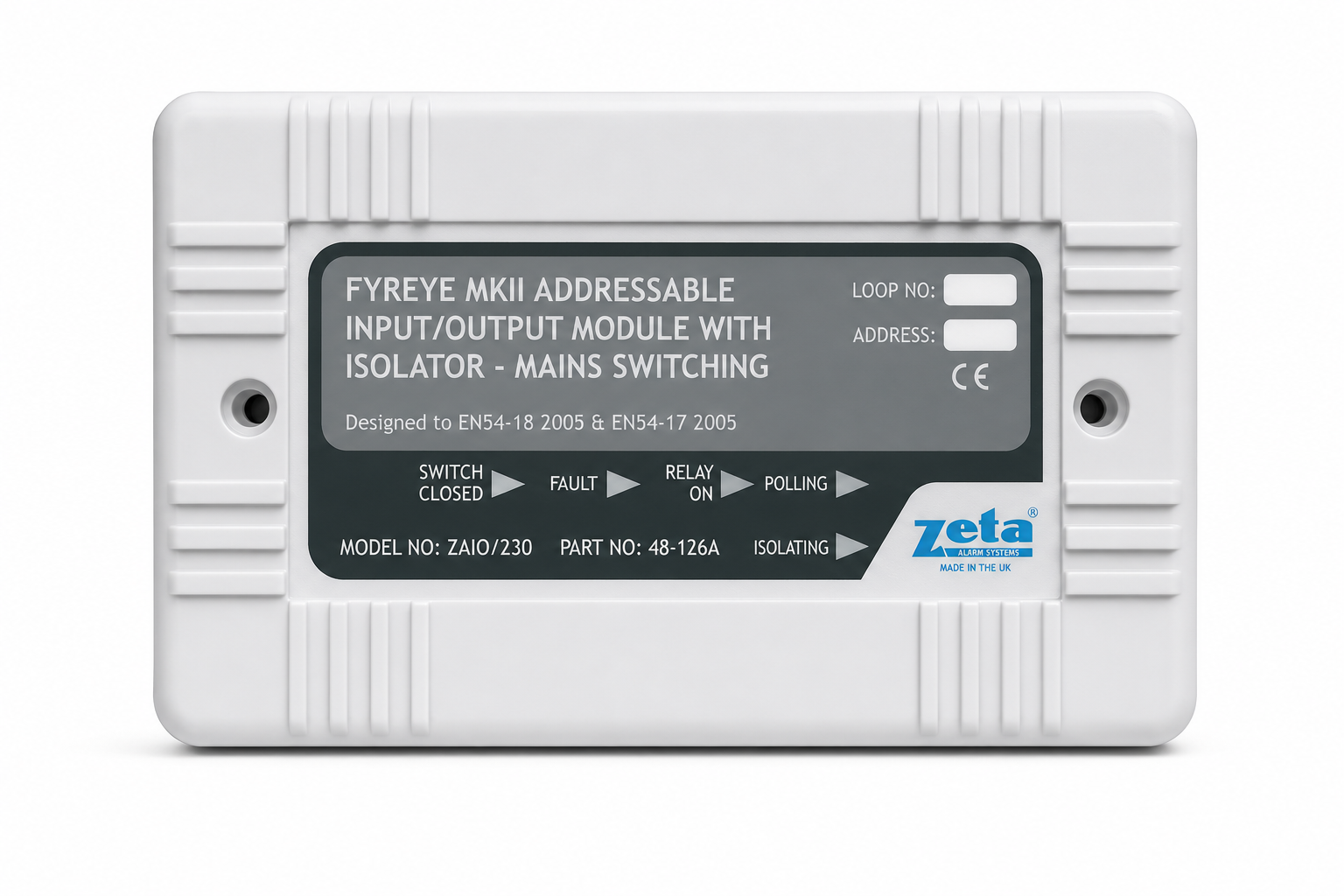

Mains switching I/O unit

  • This interface can be used to switch 8A at 230V AC. It can only be addressed with it’s DIP switch

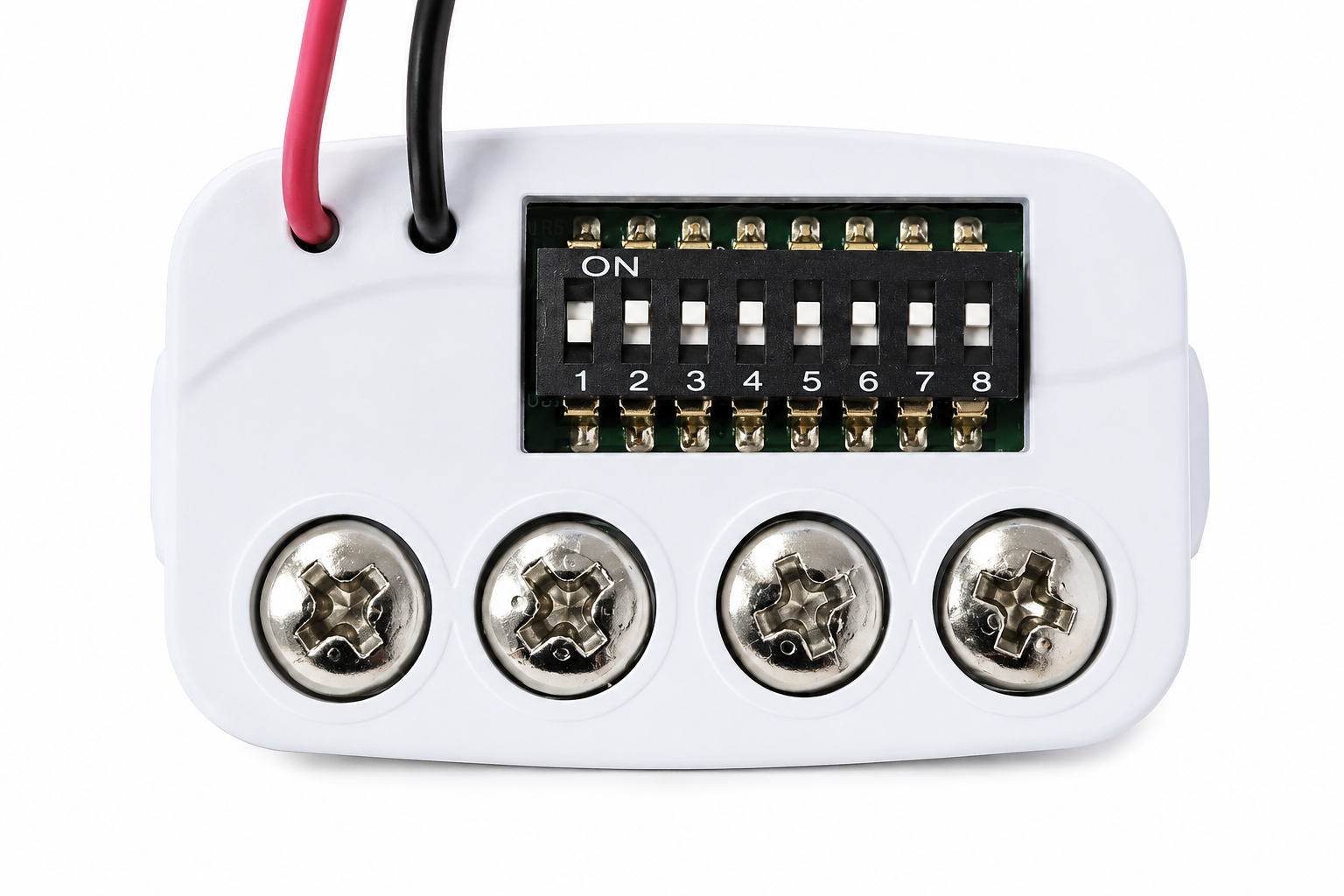

Special Mini Modules

Special Mini Modules (Red) – Call Point

  • This module provides a call point alarm input, that can be connected to a keyswitch to provide restricted alarm activation. It can also be used to connect to 3rd party conventional call points if required.





Special Mini Modules (White) – Beam Detector

  • This module allows the Zeta Beam – auto aligning beam detector to be connected to an addressable loop (Max 16 per loop).



Special Mini Modules (Yellow) – Alarm Devices

  • This module allows a conventional sounder or flasher to be connected to an addressable loop (Max current 12mA. 24 per loop).
