Addressable Detectors & Bases

Smoke Detectors

Addressable Optical Smoke Detector

  • The Fyreye MKII optical smoke detector (MKII-AOP) uses a pulsing IR LED & photodiode to detect IR scatter caused by smoke entering the chamber.
  • The detector is particularly suitable for detecting optically dense smoke, involving materials such as soft furnishings, PVC, plastic, foam and all similar materials which produce small visible particles (0.5 to 10μm).
  • Available in both black and white.
  •  Integral isolator available as an option.

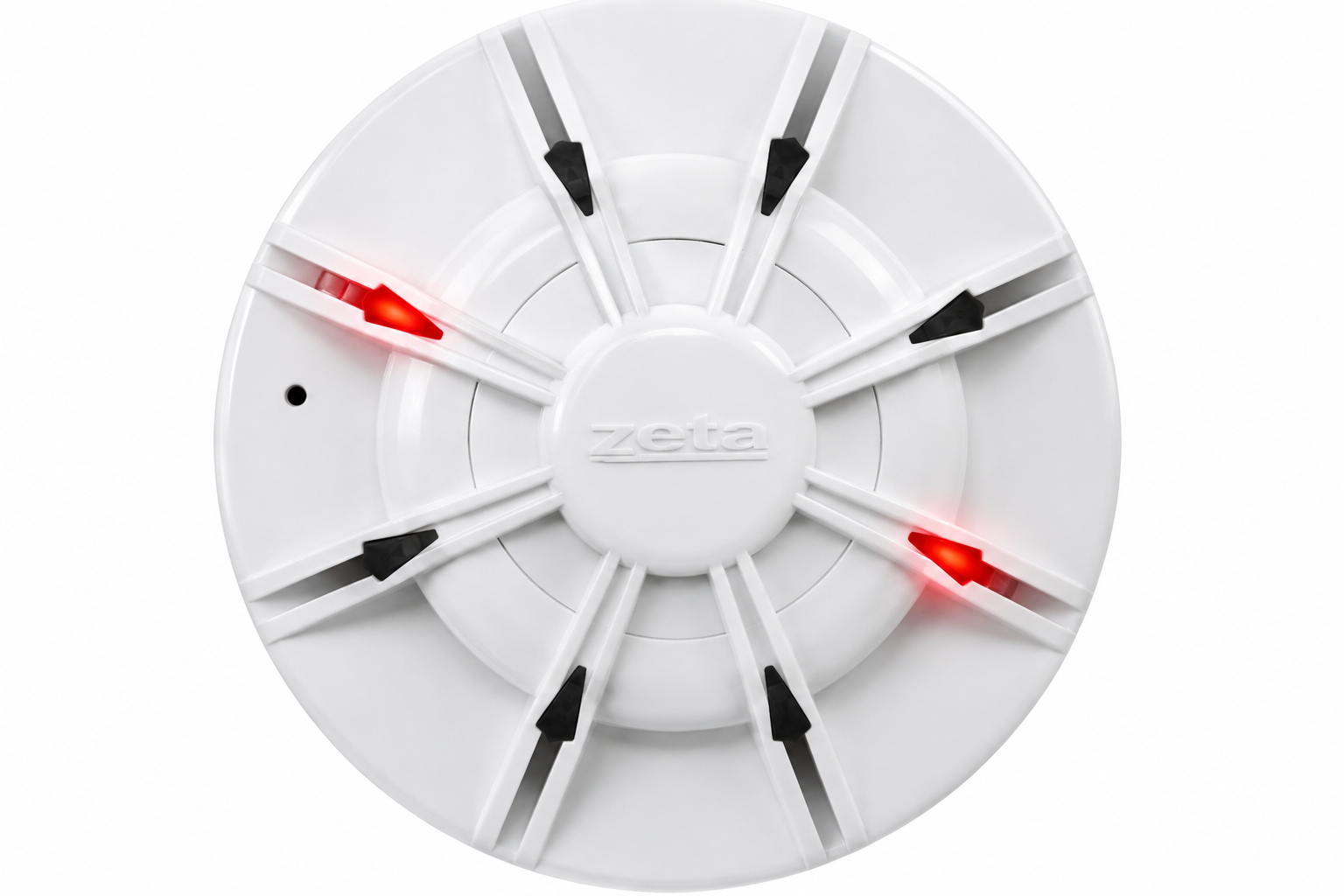

Addressable Combined Optical Smoke & Heat Detector

  • The Fyreye MKII combined optical smoke and heat detector (MKII-AOH) uses both IR scatter technology
    for smoke detection and thermistor-based heat sensing—offering faster response and greater reliability across diverse fire types.
  • Available in both black and white.
  • Integral isolator available as an option.

Heat Detectors

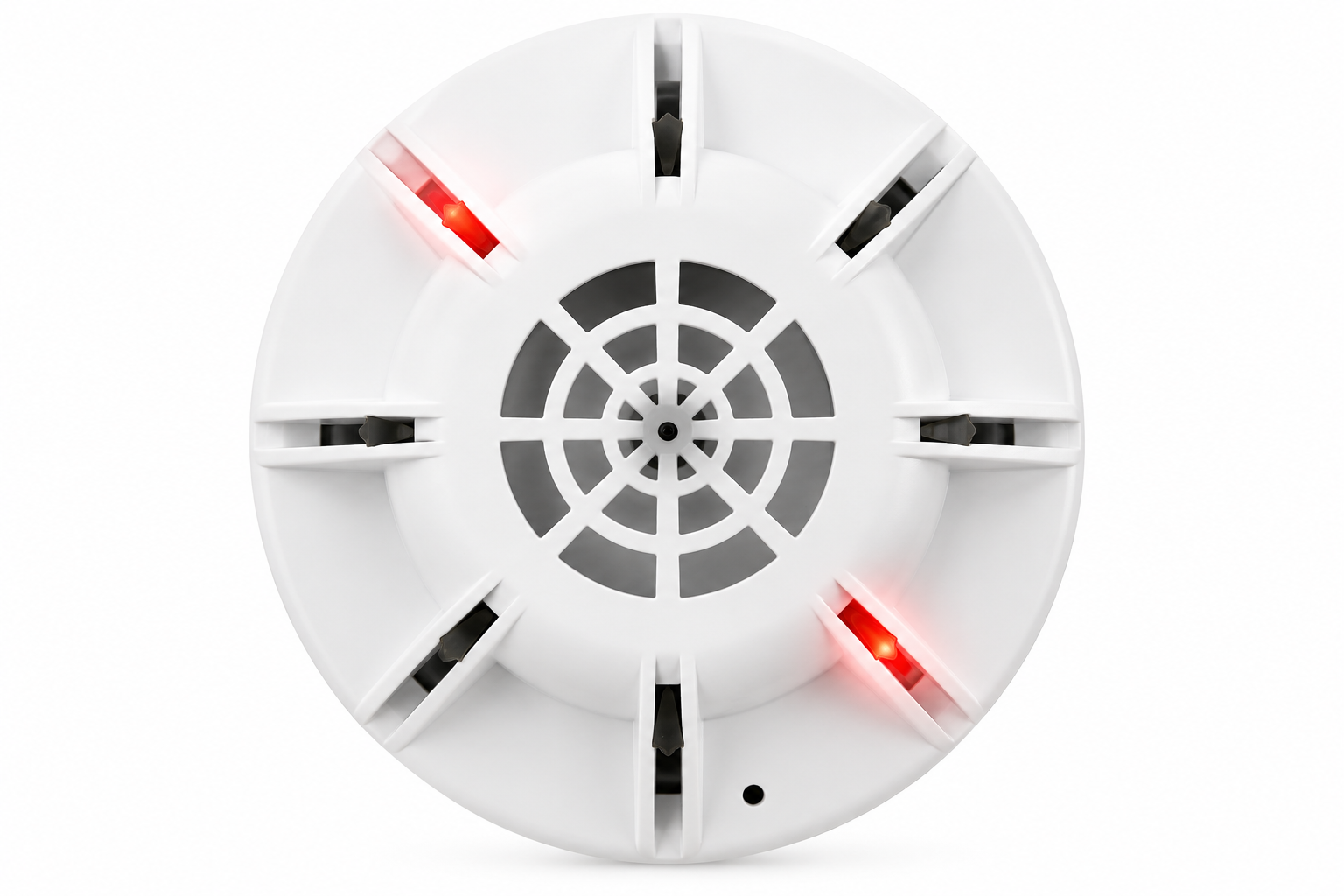

Addressable Rate of Rise Heat Detector

  • The Fyreye MKII Rate of Rise heat detector (MKII-AHR) uses a thermistor arrangement to sense a quick rise in temperature and also a final threshold temperature of 57°C.
  • Available in both black and white.
  • Integral isolator available as an option.

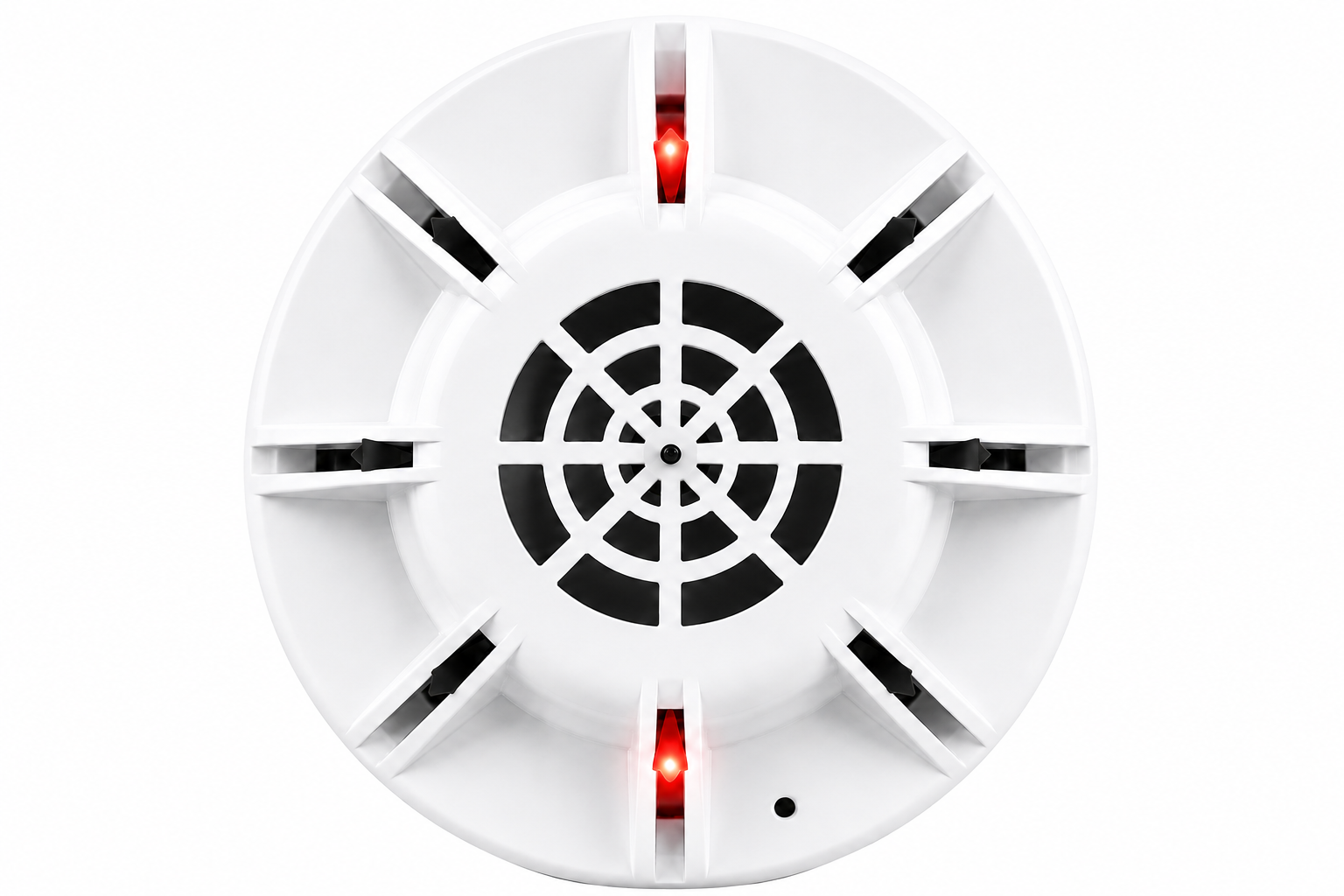

Addressable Fixed Heat Detector

  • The Fyreye fixed heat detector (MKII-AHF) has a single thermistor arrangement that gives an alarm at a temperature of 57°C, where the MKII-AHF/CS90 gives an alarm above 86°C.
  • Available with CS or A2S fixed heat ratings.
  • Available in both black and white.
  • Integral isolator available as an option.

Addressable Fixed Heat CS Detector

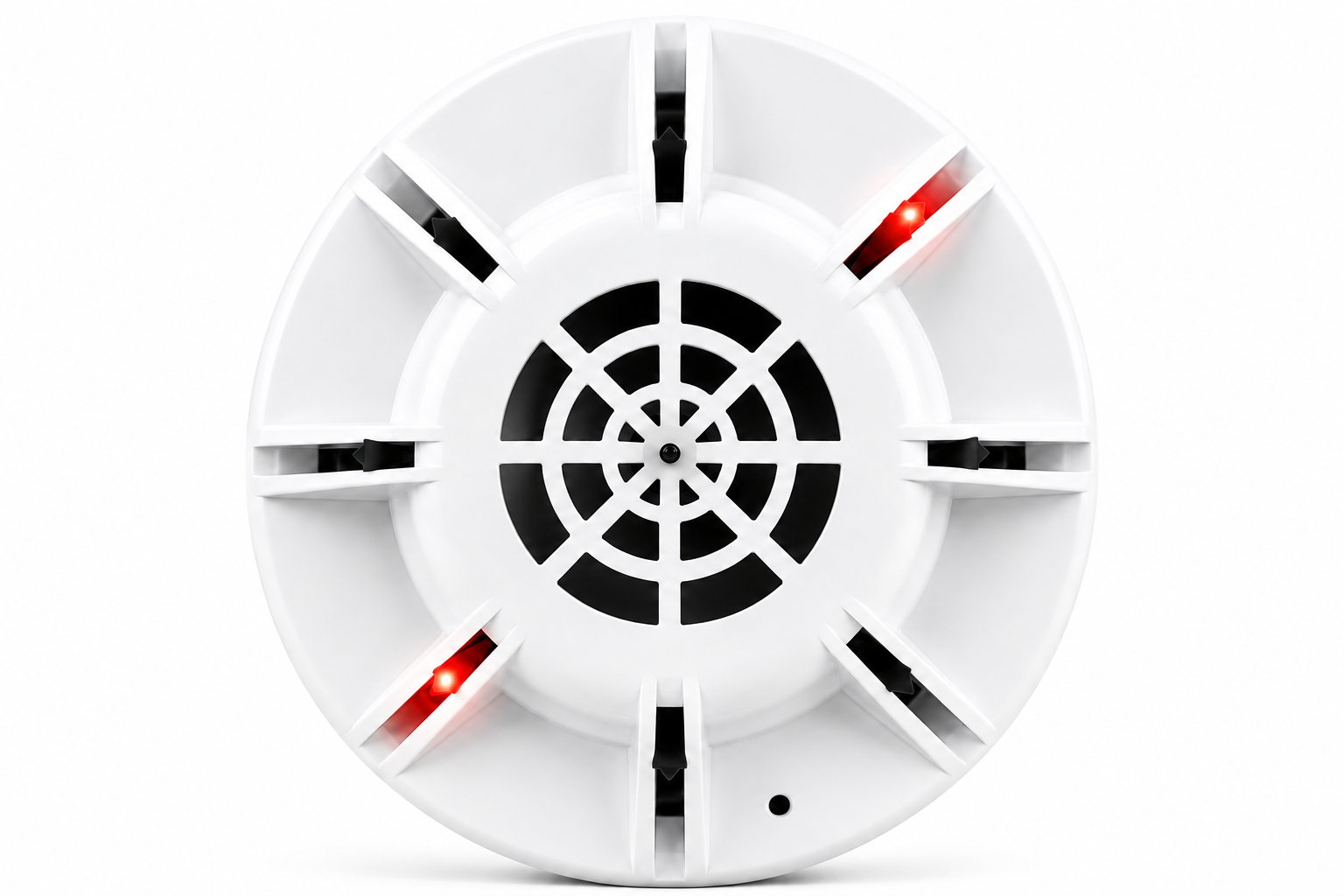

  • The Fyreye MKII Rate of Rise heat detector with built in isolator (MKII-AHRI) uses a thermistor arrangement to sense a quick rise in temperature and also a final threshold temperature of 57°C.
  • The Fyreye fixed heat detector with built in isolator (MKII- AHFI) has a single thermistor arrangement that gives an alarm at a temperature of 57°C, where the MKII-AHFI/ CS90 gives an alarm above 86°C.
  • Integral isolator built In.

Remote LED Indicators

Wall Mounted Addressable Remote LED Indicator

  • There are two models for the remote LED indicator, a wall type MKII-ARL/W and ceiling mounted type (requires a base) MKII-ARL/C.
  • Each unit is equipped with 8 LEDs and mimics the detector LED in alarm condition.

Ceiling Mounted Addressable Remote LED Indicator

  • There are two models for the remote LED indicator, a wall type MKII-ARL/C and ceiling mounted type (requires a base) MKII-ARL/C.
  • Each unit is equipped with 8 LEDs and mimics the detector LED in alarm condition.

Detector Bases

Common Base

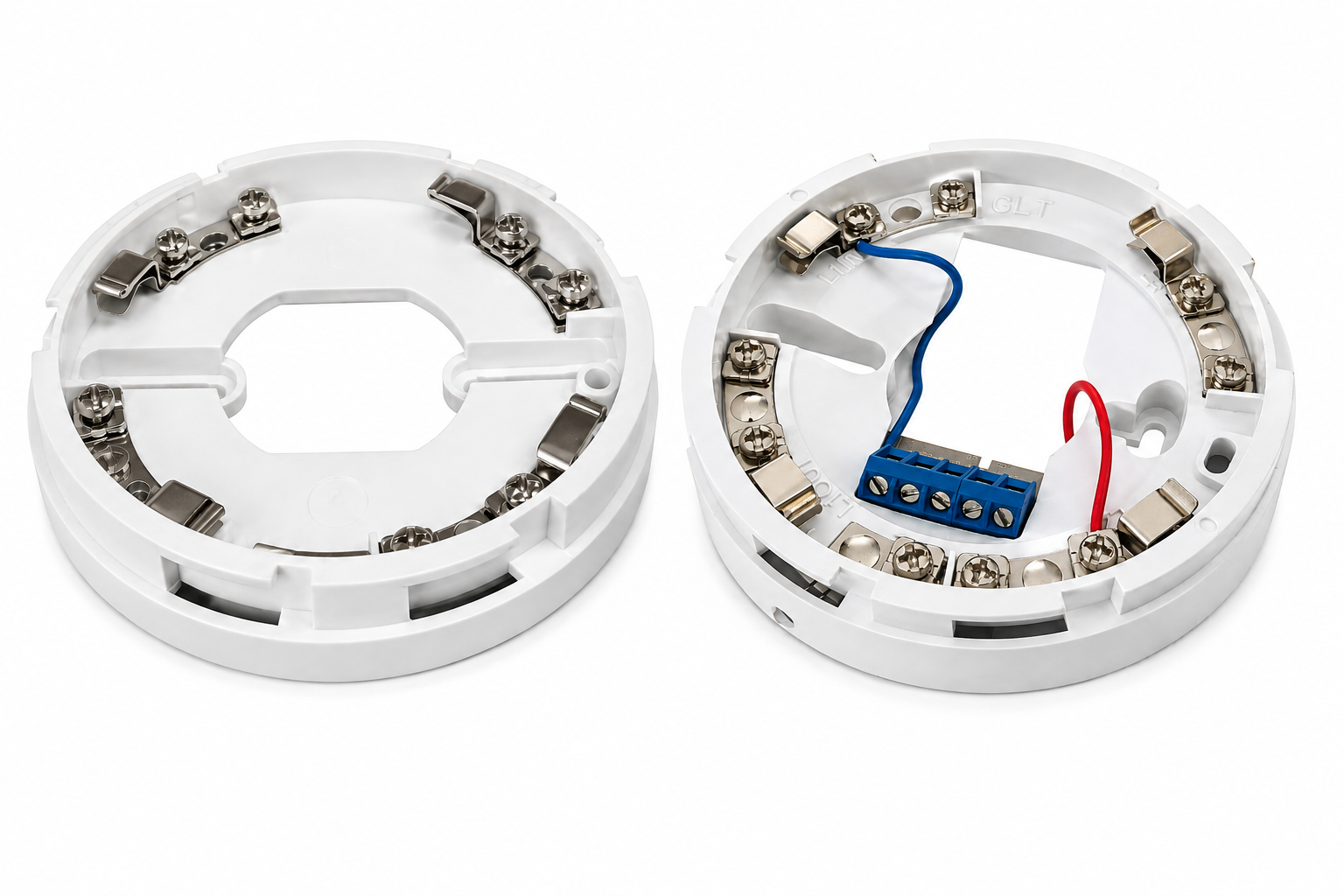

  • The MKII range of detectors can be mounted on 3 different bases, a shallow base (MKII-CB), a deep base (MKII-CB/D) and an isolator base (MKII-IB).

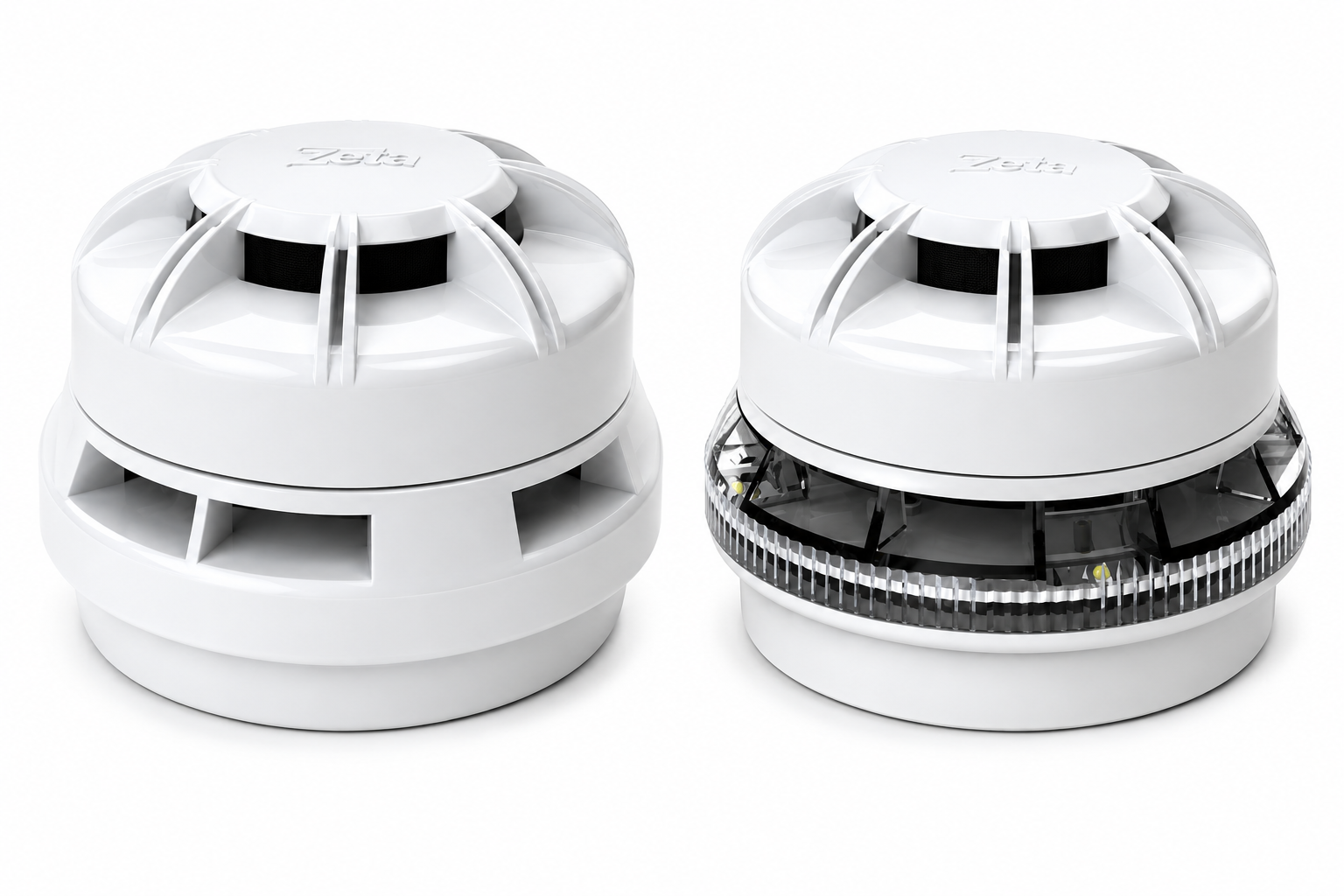

CS100 Sounder and Sounder VAD

  • The CS100 range of addressable sounder and sounder VAD bases is designed for the Zeta Fyreye II protocol, suitable for most indoor applications. Available as a sounder-only (CS100-AD) or sounder beacon (CS100-VAD), with hard or soft addressing and adjustable settings via SMART control panels.

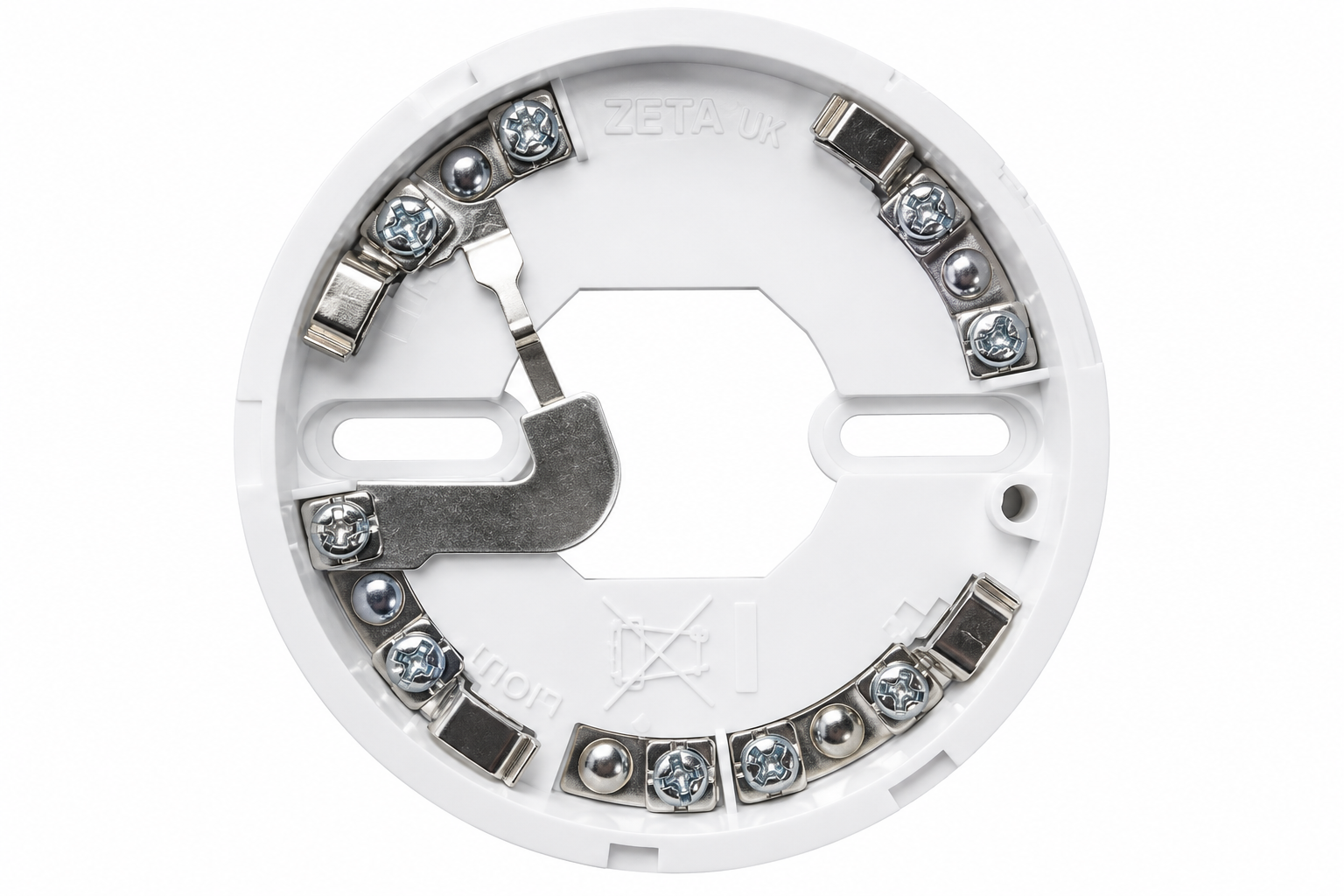

Common Base For Use With Detectors c/w Isolator

  • Fyreye MKII Addressable Common Base for use with MKII-AOPI, MKII-AHRI, MKII-AHFI & MKII-AOHI.
